Deep Analysis and Implementation Guide for the 7-Layer Agentic AI Architecture

🌐 Visit the Agentic AI Stack Website

Key takeaway:
Building production-grade AI agents requires seven tightly-coupled layers—from the language-model “brain” down to observability and feedback. Each layer has distinct responsibilities, integration patterns, and best-in-class open-source options. Mastering them enables you to design reliable, scalable, and auditable agent systems.

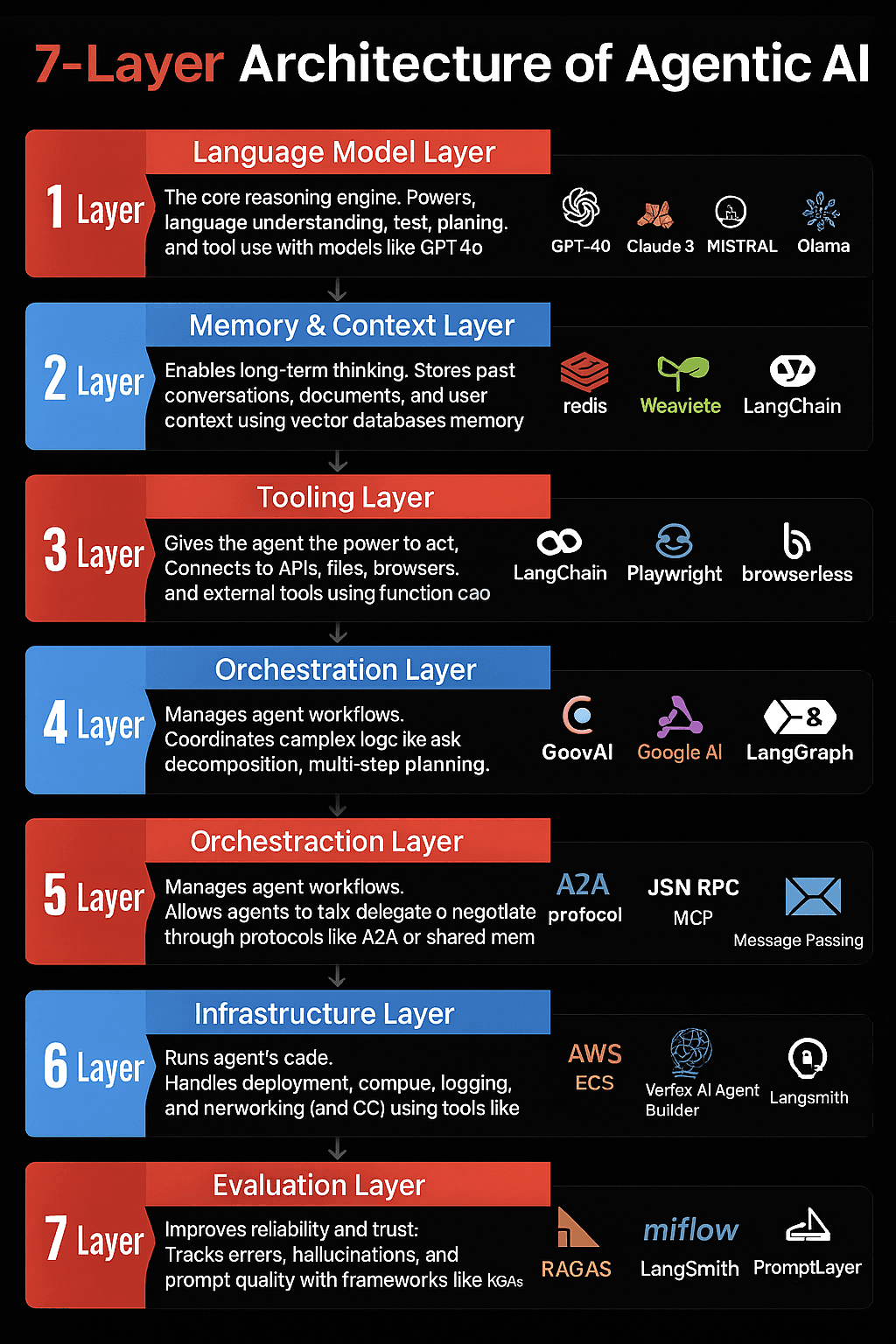

1 Language Model Layer

Powers reasoning, planning, and tool invocation.

Item	Purpose	Example Config (JSON)	Alternatives & Selection Rationale
GPT-4o	General reasoning, code, multimodal	{ "model": "gpt-4o-mini", "temperature":0.2 }	Claude 3 Opus (strong ethics), Mistral-Large (self-host)

Setup (Python, OpenAI SDK)

pythonCopy
from openai import OpenAI
llm = OpenAI(model="gpt-4o-mini", temperature=0.2)

Best practices: tool-calling schema, deterministic temp ≤ 0.3, eval guardrails.
Pain points: rate limits, cost. Use caching layer (Redis).

2 Memory & Context Layer

Long-term knowledge + short-term conversation state.

Tool	Use case	Quick snippet
Redis	Session buffer	docker run -p 6379:6379 redis
Weaviate	Vector recall/RAG	see quickstart
Pinecone	Cloud vector store	pc.create_index_for_model(...)

Design: 🔄 Read-from-memory → LLM → Append-to-memory loop with expiry TTL for chat memories and perpetual namespace for knowledge embeddings.

Gotchas: embedding drift—version vectors; enforce schema migrations.

3 Tooling Layer

Let agents act in the world.

Library	Sample tool declaration
LangChain	@tool\n def get_weather(city:str)->str:
Playwright	scraping web pages
Browserless	headless Chrome API

Alternatives: CrewAI native tools, AutoGen function tools. Debug tips: log arguments & returns in LangSmith traces.

4 Orchestration Layer

Plan, route, and coordinate steps or multiple agents.

Framework	Pattern	YAML sample
LangGraph	Graph state machine	see AWS multi-agent example
CrewAI	Crew & Flow DSL	process: sequential
Autogen	Chat-based planners	actor-model

Implementation snippet (LangGraph):

pythonCopy
from langgraph.graph import StateGraph
graph = StateGraph(State)
graph.add_node("planner", plan_node)
graph.add_edge("planner","workers")
graph.set_entry_point("planner")
workflow = graph.compile()

Best practices: deterministic routing, guard for infinite loops.
Limitations: concurrency; use task queue (Celery/SQS).

5 Communication Layer

Agent-to-agent protocols.

Protocol	Role	Example
A2A	Agent discovery & JSON-RPC messaging	Agent card:{ "id":"finance-bot", "endpoints":{ "rpc":"https://fin/rpc" } }
MCP	LLM↔️Data connector standard	.well-known/mcp.json to expose schema

Selection: MCP for tool/data connectivity, A2A for peer collaboration.

6 Infrastructure Layer

Packaging, scalability, CI/CD.

Component	Sample
Docker	Dockerfile with poetry + uvloop
AWS ECS Fargate	IaC—Terraform task definition
Vertex AI Agent Builder	turnkey hosting

Step-by-step:

1. docker build -t agentic:latest .
2. Push to ECR.
3. terraform apply cluster + autoscaling.

7 Evaluation & Observability Layer

Reliability guardrails.

Tool	Focus	Sample
LangSmith	Traces & cost	LANGCHAIN_TRACING_V2=true
RAGAS	RAG answer quality	result = evaluate(ds)
PromptLayer	Prompt diff tracking

Common metrics: context precision, faithfulness, latency, dollars/1k tokens.
Gotchas: PII in prompts—mask before storage.

End-to-End Sample Project

agentic-demo/
├── infra/
│   └── terraform/
├── app/
│   ├── main.py
│   ├── graph.py
│   ├── tools/
│   │   └── weather.py
│   ├── memory/
│   │   └── redis_store.py
│   └── protocols/
│       ├── a2a_client.py
│       └── mcp_connector.py
├── Dockerfile
├── docker-compose.yml
└── README.md

Key Code (graph.py)

pythonCopy
from langgraph.graph import StateGraph
from tools.weather import get_weather
from memory.redis_store import session_memory
from openai import OpenAI

llm = OpenAI(model="gpt-4o-mini", temperature=0.2)

def planner(state):
    goal = state["input"]
    return {"messages":[{"role":"planner","content":f"Plan for {goal}"}]}

def executor(state):
    plan = state["messages"][-1]["content"]
    if "weather" in plan:
        city = plan.split()[-1]
        result = get_weather(city)
        state["messages"].append({"role":"tool","content":result})
    return state

graph = StateGraph(dict)
graph.add_node("planner", planner)
graph.add_node("executor", executor)
graph.add_edge("planner","executor")
graph.set_entry_point("planner")
agent = graph.compile()

Local Dev

bashCopy
docker-compose up -d redis weaviate
poetry install
python app/main.py

Deployment

bashCopy
cd infra/terraform && terraform apply   # creates ECS service, Redis cluster

Best-Practice Checklist

1. Deterministic planning: temperature ≤ 0.3 for planner nodes.
2. Vector hygiene: re-embed on model upgrade; track embedding_version.
3. Timeouts & retries on tool calls; propagate exceptions to evaluator.
4. Observability first: enable LangSmith from day 0, tag runs with git SHA.
5. Security: isolate tool credentials per agent; network policies on A2A ports.
6. Cost controls: stream responses, early-stop loops, nightly RAGAS score regression.

Debugging & Logging Tips

• Attach VerboseCallbackHandler() in LangChain to stream chain steps.
• Use agentic.demo% CloudWatch metric filters for failed executions.
• Persist conversation IDs; replay through LangSmith UI to trace hallucinations.

Common Pain Points

Layer	Issue	Mitigation
Memory	“Stale context”	TTL eviction; retrieval filters
Orchestration	Looping	max-turn guard + evaluator
Infra	GPU cost	quantized local models (Mistral-8x-Q4)

Conclusion

A production agent system is a full-stack endeavor. By separating concerns into the seven layers and using the open-source tooling, configs, and patterns above, you can build scalable, maintainable, and trustworthy AI agents—moving from prototype to enterprise deployment with confidence.
